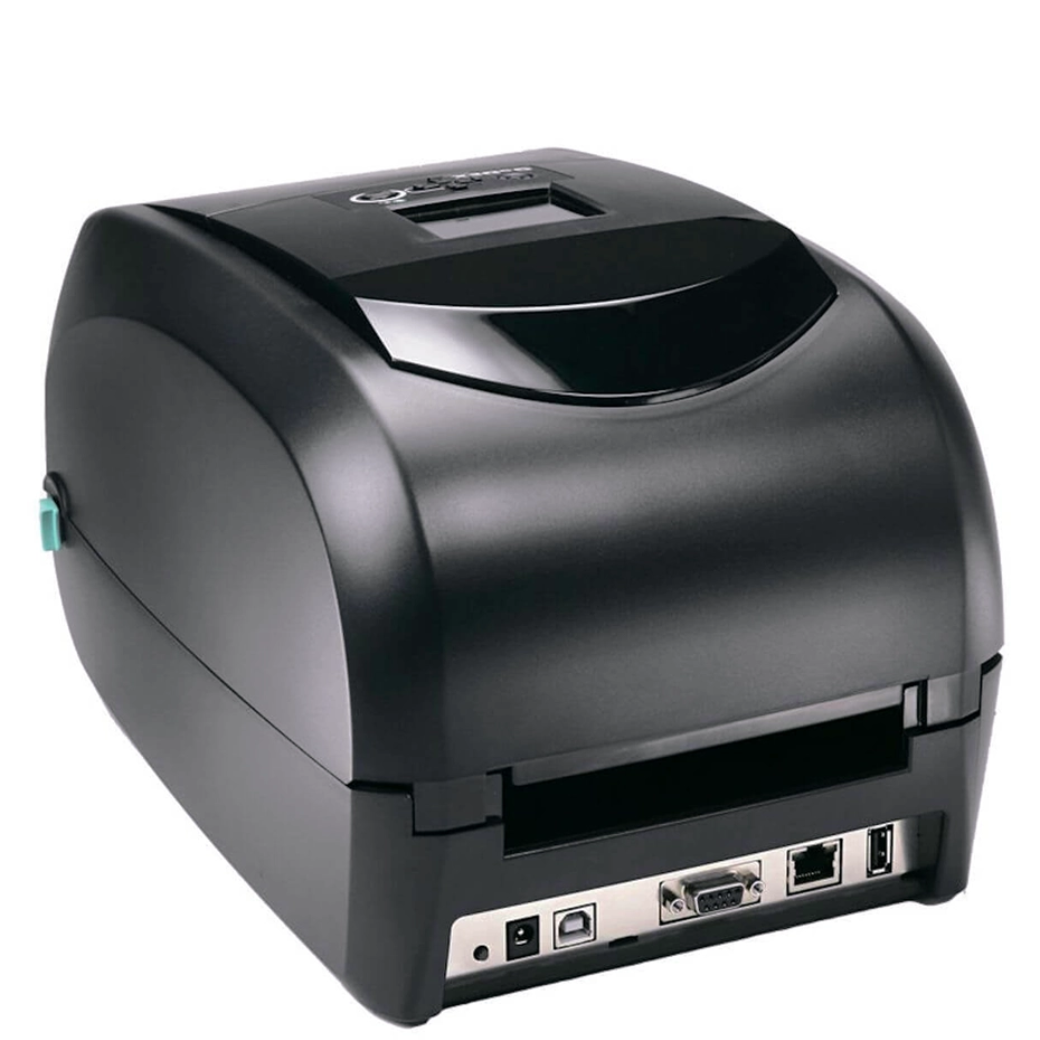

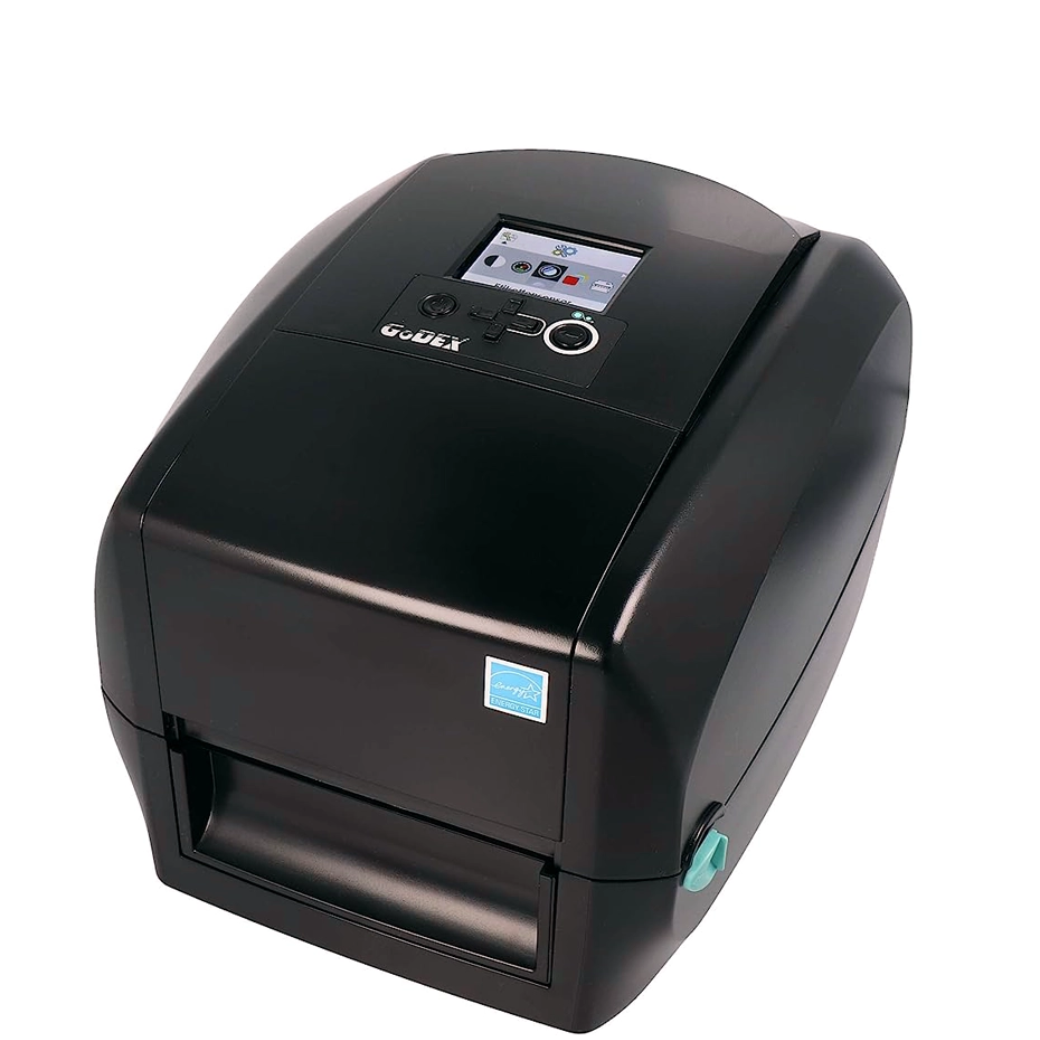

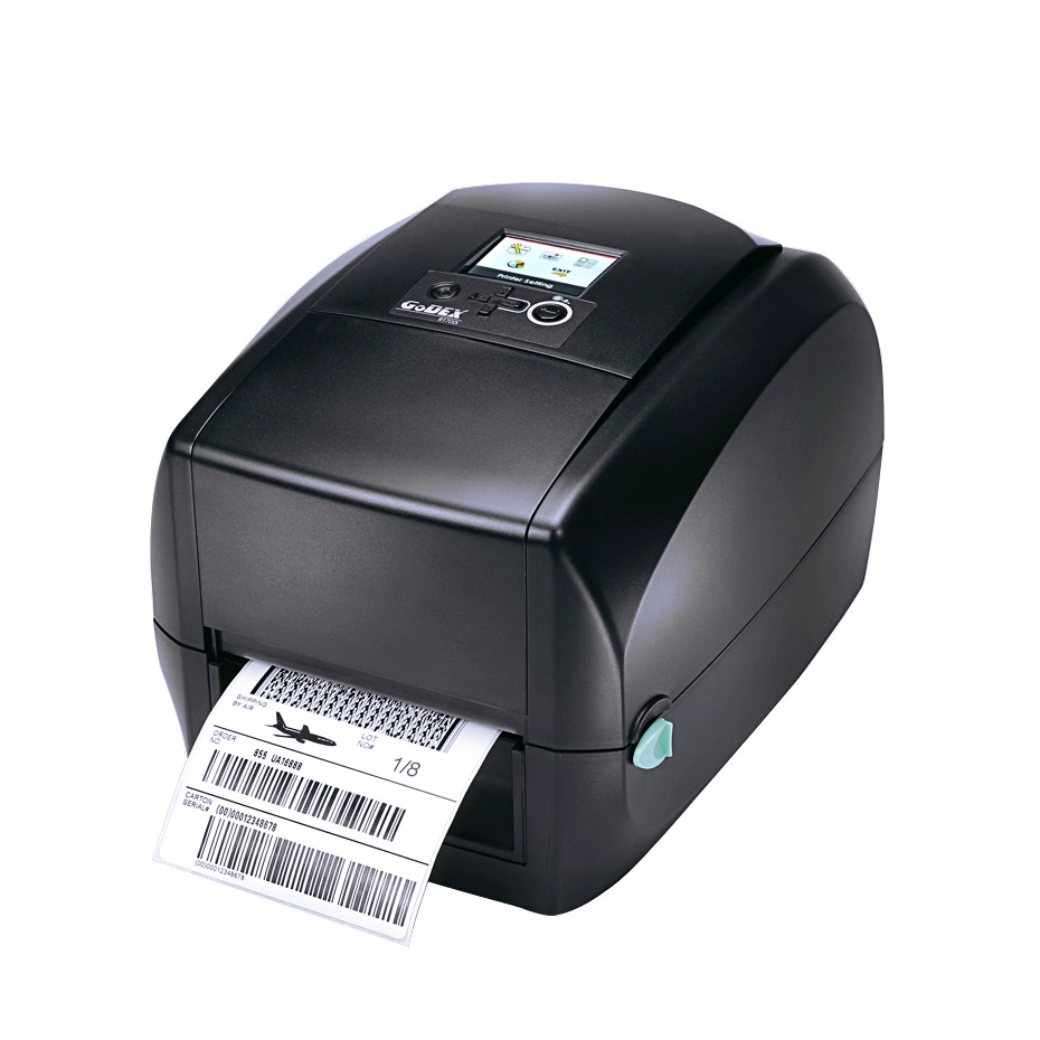

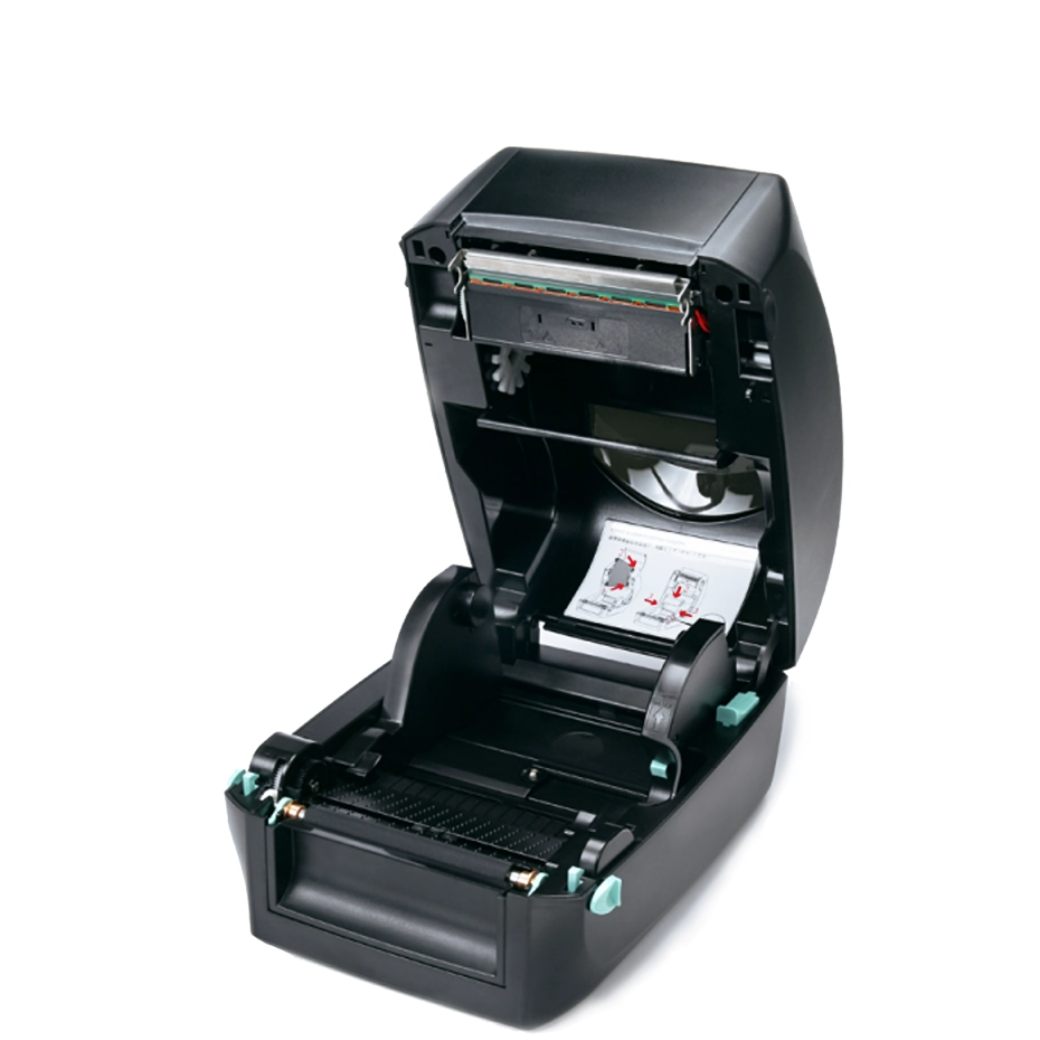

GODEX RT730X

Specifications

Printing Method

• Thermal Transfer (with ribbon) and Direct Thermal

• Print Resolution : 300 dpi (12 dots/mm)

• Print Speed : up to 5 ips (127 mm/s)

• Maximum Print Width : 4.16″ (105.7 mm)

• Print Length : Min. 0.16″ (4 mm); Max. 30″ (762 mm)

Processor & Memory

• Processor : 32-bit RISC CPU

• Memory : 8 MB Flash (4 MB user-available) / 16 MB SDRAM

Media

• Media Types : Continuous, Gap, Black Mark, and Notched labels

• Media Width : Min. 0.79″ (20 mm) to Max. 4.64″ (118 mm)

• Media Thickness : Min. 0.003″ (0.06 mm) to Max. 0.01″ (0.2 mm)

• Roll Diameter : up to 5″ (127 mm)

• Core Diameter : 1″ (25.4 mm), 1.5″ (38.1 mm)

Ribbon

• Ribbon Types : Wax, Wax/Resin, Resin

• Ribbon Length : 300 meters

• Ribbon Width : Min. 1.18″ (30 mm) to Max. 4.33″ (110 mm)

• Ribbon Core : 1″ (25.4 mm)

Connectivity

• Standard Interfaces : USB 2.0, Serial (RS-232), Ethernet 10/100 Mbps, USB Host

• Optional Interfaces : Bluetooth, Wi-Fi

Other Features

• Control Panel : LED indicators (Ready & Status) with FEED and Calibrate buttons

• Sensors : Fixed Transmissive sensor and adjustable Reflective sensor

• Dimensions (W x D x H) : 210 x 280 x 186 mm

• Weight : 2.4 – 2.7 kg (without consumables)

• Printer Languages : EZPL, GEPL, GZPL (auto switch)

• Barcode Support : 1D and 2D barcodes (multiple symbologies supported)
