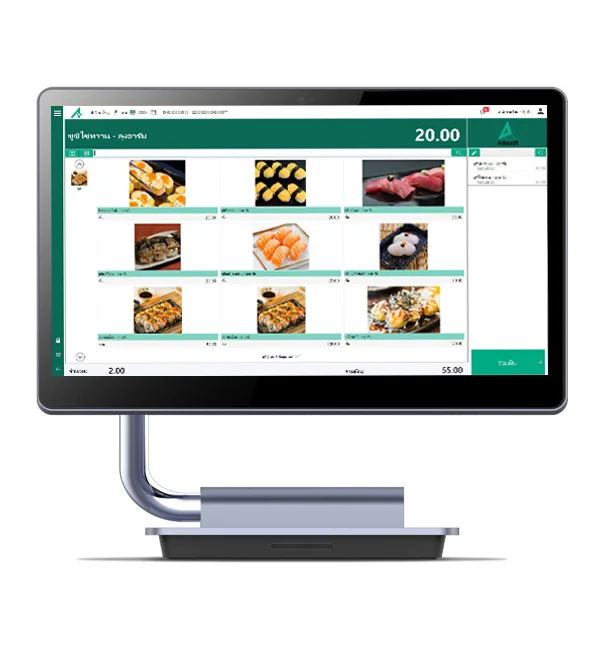

L1600
Operating System
Android 12
Processor
Quad-core@2.0GHz
Memory
2GB LPDDR4.X +16GB eMMC
3GB LPDDR4.X+32GB eMMC（Optional）
1 SD slot, up to 128GB
Displays
Main Display: 15.6 inch 1920×1080 Pixels IPS FHD Touch Screen
Customer Facing Display：
L1600: N/A
L1601: 10.1 inch 1280×800 Pixels IPS Screen, optional touch
L1602: 15.6 inch 1920×1080 Pixels IPS Screen, optional touch
Cameras
Main Display：5M AF（optional）
Customer Facing Display：5M AF（optional）
Keys / Buttons
Power Button
FingerID
FingerPrint Reader on
Power Button(optional)
Comms Configurations
Wi-Fi 2.4/5GHz+BT5.0
Audio
Microphone
Speaker：1*3W
SAM Card Slot
1 Mini SAM (optional)
Power Indicator
White LED
Ports
1* Type A 3.0 | 3* Type A 2.0 | 1*Type C | 1*LAN（1000M）
1*DK（24V/12V）1*RS232(RJ45) | 1*DC | 1*Audio Jack
Environmental
0°C ~ 50°C (32°F ~ 122°F) Operating Temperature
-20°C ~ 70°C (-4°F ~ 158°F) Storage Temperature
10% ~ 93% Relative Humidity, Non-Condensing
Power
Input:100-240V AC, 1A max
Output: 24V DC, 1.5A
Physical
364.6*220*322.4mm
Safety Certification
FCC | IC | UL | CE | UKCA | CCC | SRRC | BQB | ROHS
